Performance
* Large Power ; Sensor closer to tip ; Micro computer  digital ; PID temperature control ; Fast heating and rapid heat recovery ; Reach up to 350℃ less than 18s from room temperature.
* Suitable for lead free soldering.
* Heater and Sensor are separate.
* Easy to calibration temperature by digitally.
* Temperature set by keys; Password lock temperature.
* Auto Sleeping mode and Automatic shut off when not use in 1 hour.
* ESD safe by design.

    Specifications

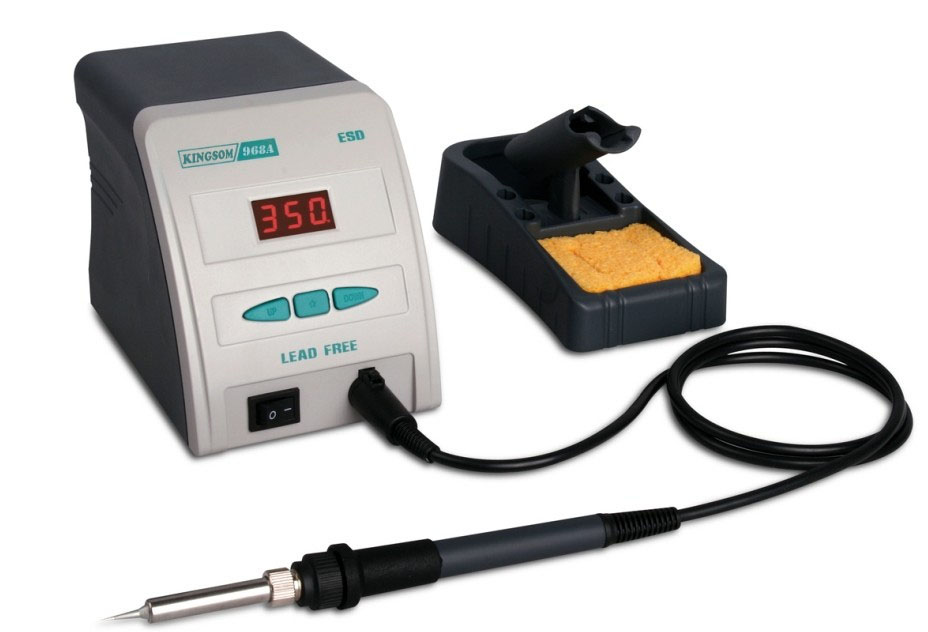

Model KS-968A
Temperature Range 200℃ - 450℃  or  50℃ - 500℃
Temperature Stability ±2℃
Output Voltage 24VAC
Max Power 100W
Time of temperature
rising (20℃-350℃) 		18 Sec
Tip to Ground Resistance < 2Ω
Tip to Ground Potential < 2mV
Auto Sleeping Yes
Temperature-Lock Mode Password

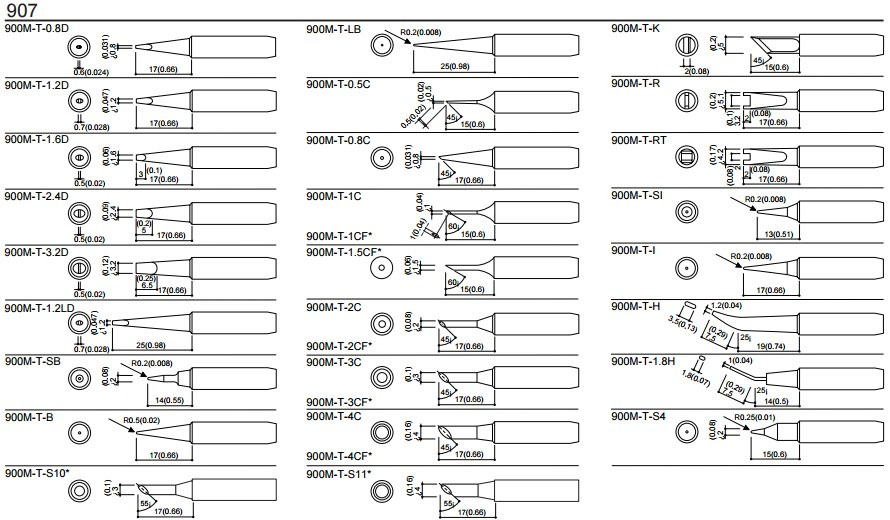

Soldering Tip900M Series




Performance
* Astonished heating speed
Only within 25 Sec to reach 350℃ from room temperature.
* Perfect intelligent soldering effects
sufficient power varies with the sizes of soldering point.
Effectively avoid negative impact by cold soldering etc.
* Extraordinary heat recovery
Incredible temperature compensation speed can solve temperature problems occurred during the course of lead-free soldering. It is a must, maybe a better tool for lead-free soldering and lower-temperature soldering.
* Extension of life of soldering tips
Relative lower temperature will largely prolong the life of soldering tips.

   Download User Manual KS-200DH
   ดาวน์โหลด วิธีการ Calibration อุณหภูมิ

   Practical Function
   1、Auto sleeping, energy-efficient
Temperature will lower to 200℃ when not in use over 20 minutes. When work is needed again, Temperature will reach up to set one rapidly. If station not resume more than 40 minutes after it comes to sleep, the power supply will be shut off automatically, and window display will not show anything.
   2、Temperature locking by password
Stable soldering temperature ensures high soldering effects. Temperature can be locked by password to prevent inadvertent changes.

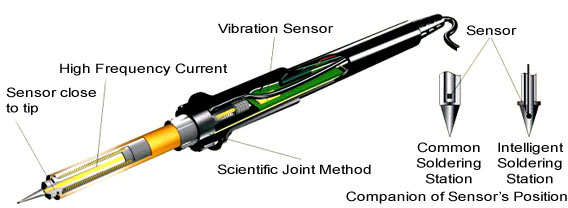

   3、Separate design between heater and soldering tips
Separate design of heater and tip makes the replacement easy so as to save expenditure and cost.

    Specifications
Model KS-200DH
Temperature Range 200℃-420℃  or  200℃-480℃  or  50℃-420℃  or  50℃-600℃
Temperature Stability(no load) ±2℃
Input Voltage/Frequency 220V or 110V 50Hz/60Hz
Output Voltage/Frequency 36VAC 400KHz
Max Power 90W
Time of temperature rising(20℃-350℃) 25 Sec
Temperature Compensation Speed Most Quick
Temperature Dropping 20℃
Heating Mode Intelligent
Heating Theory Induction Heater (Frequency Control)
Tip to Ground Resistance < 2Ω
Tip to Ground Potential < 2mV
Auto Sleeping Yes
Temperature-Lock Mode Password
ESD Housing Aluminum housing

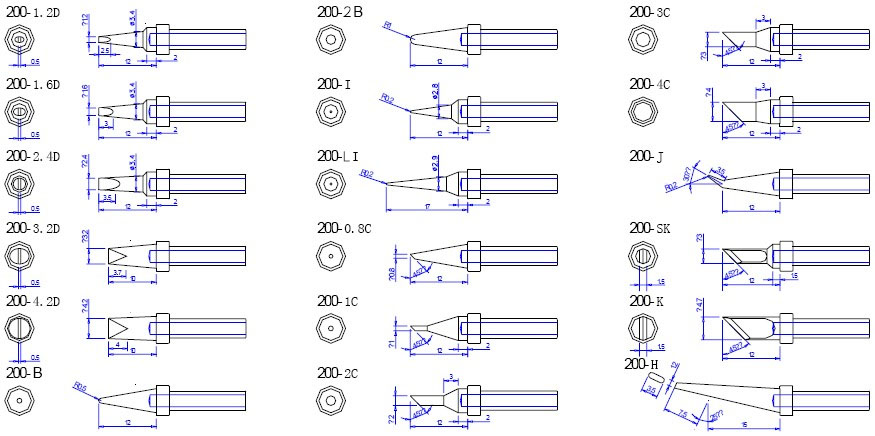

Soldering Tip200 Series



 Soldering Tip

200-5C Make to order not in list

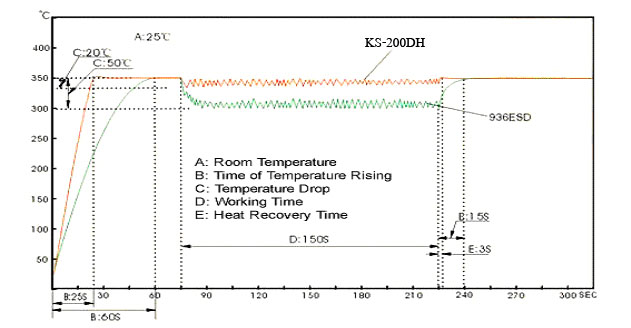

Comparison of Curve between Temperature rising and Heat Recovery


Test Conditions
PCB : Copper Plate ,  Soldering Plate : Ø 1.6Ⅹ6.0,  Period : Solder every 3sec,  Tip : 2.4D


Performance
* High frequency current heating
* Fast Heating and rapid thermal recovery
* Suitable for lead free soldering
* Microcomputer control
* Suitable for lead free soldering.
* Heater and Sensor are separate.
* Easy to calibration temperature by digitally.
* Temperature set by keys ; Password lock temperature.
* Auto Sleeping mode and Automatic shut off when not use in 1 hour.
* ESD safe by design.

    Download User Manual KS-205DH
    ดาวน์โหลด วิธีการ Calibration อุณหภูมิ

    Specifications
Model KS-205
Temperature Range 200℃ - 450℃  or  50℃ - 600℃
Temperature Stability(no load) ±2℃
Input Voltage /Output Voltage In:110VAC or 220VAC / Out: 36VAC 400KHz
Max Power 150W
Time of temperature rising(20℃-350℃) 18 Sec
Heating Theory Induction Heater (Frequency Control)
Tip to Ground Resistance < 2Ω
Tip to Ground Potential < 2mV
Auto Sleeping Yes
Temperature-Lock Mode Password

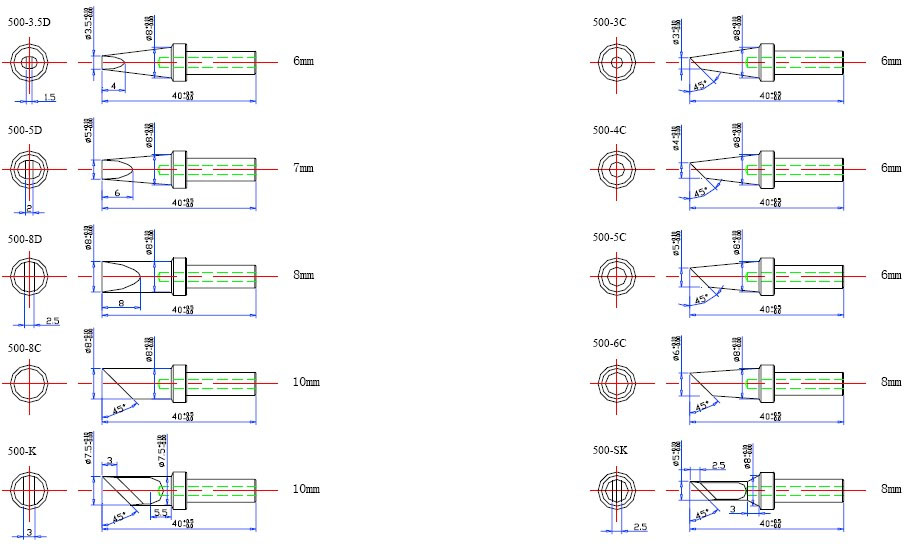

Soldring Tip500 Series

  Soldering Tip




Performance
MCU controlled temperature calibration with PID system equipped.
Imported heat-resistant materials heater with long life.
The heater using low voltage AC source to ensure the antistatic and no leakage, no interference.
Steady temperature setting with 200～480℃.
Rapid heating-up.
Legerity handle suitable for long time operation.
Unique temperature locks setting to avoid adjusting temperature.
Using split design, easy to place.

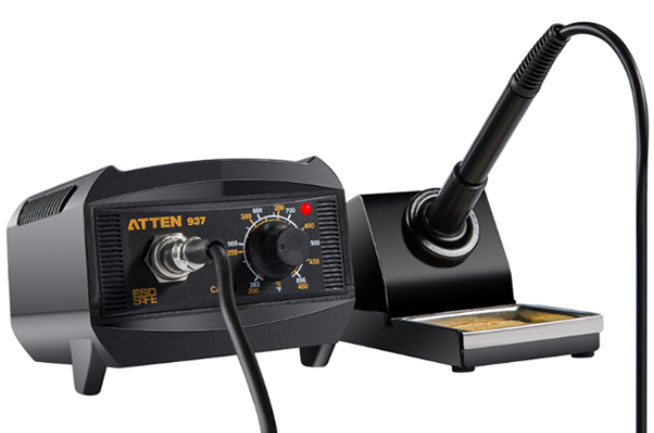

Download User Manual of AT937

ModelAT937
Input Voltage220VAC
Temperature Range200°C ~ 480°C
Power 50 Watt
Temperature Stability±2℃ (in still air, no load)
Setting MethodKnob control
HeaterFour core stainless steel heater
Tip To Ground Impedance< 2Ω
Tip To Ground Voltage< 2mV
Soldring Tip900M Series



Performance
Temperature read out in ℃ and ℉
On/Off switch on the right side of the unit.
MCU controlled temperature calibration.
Simulate bar indicating heating up status.
LCD display screen making control visualization.
User-friendly menu enables system setting easier.
Separate iron stand to save room and to make easier deposit.
Buttons (1, 2, 3) for pre-setting or switching frequently used temperature.
Low-voltage heater separated from power supply to keep soldering work safer.
Soldering tip designed separate from heater and using exchangeable 900M series to save use-cost.

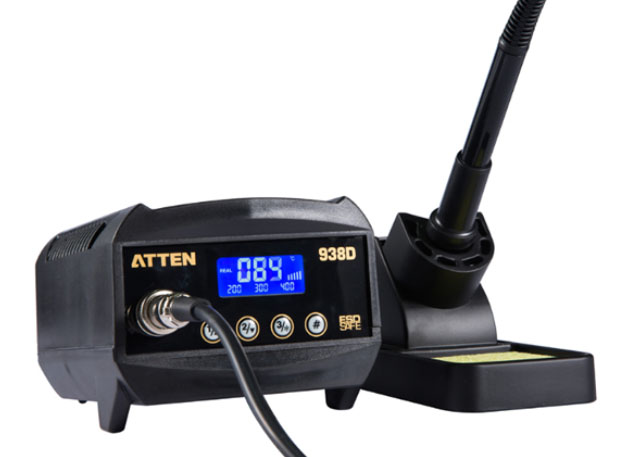

Download User Manual of AT938D

ModelAT938D
Input Voltage220VAC
Temperature Range150°C ~ 450°C
Power 60 Watt
Temperature Stability±2℃ (in still air, no load)
Setting MethodAdjust by buttons
Temperature CalibrationDigital
HeaterDual-core ceramic heater
Tip To Ground Impedance< 2Ω
Tip To Ground Voltage< 2mV
Soldring Tip900M Series



Performance
High performance pluggable four-core heating element;
Temperature read out in ℃ and ℉
On/Off switch on the right side of the unit.
MCU controlled temperature calibration.
Simulate bar indicating heating up status.
LCD display screen making control visualization.
User-friendly menu enables system setting easier.
Separate iron stand to save room and to make easier deposit.
Buttons (1, 2, 3) for pre-setting or switching frequently used temperature.
Low-voltage heater separated from power supply to keep soldering work safer.
Soldering tip designed separate from heater and using exchangeable 900M series to save use-cost.

Download User Manual of AT938E

ModelAT938E
Input Voltage220VAC
Temperature Range150°C ~ 450°C
Power 80 Watt
Temperature Stability±2℃ (in still air, no load)
Setting MethodAdjust by buttons
Temperature CalibrationDigital
HeaterHigh quality pluggable four-core heating element
Tip To Ground Impedance< 2Ω
Tip To Ground Voltage< 2mV
Soldring Tip900M Series



Performance
● High performance dual-core ceramic heater.
● Smart recognition of working or non-working status.
● Automatic standby, shutdown with smart time setting.
● Temperature locking.
● Beep alarm function available.
● Temperature read out in ℃ and ℉
● MCU controlled temperature calibration.
● Simulate bar indicating heating up status.
● User-friendly menu enables system setting easier.
● Separate iron stand to save room and to make easier deposit.
● New design with LCD display screen making control visualization.
● Buttons(1,2,3) for pre-setting or switching frequently used temperature.
● Low-voltage heater separated from power supply to keep soldering
work safer.
● Soldering tip designed separate from heater and using
● Exchangeable 900M series to save use-cost.

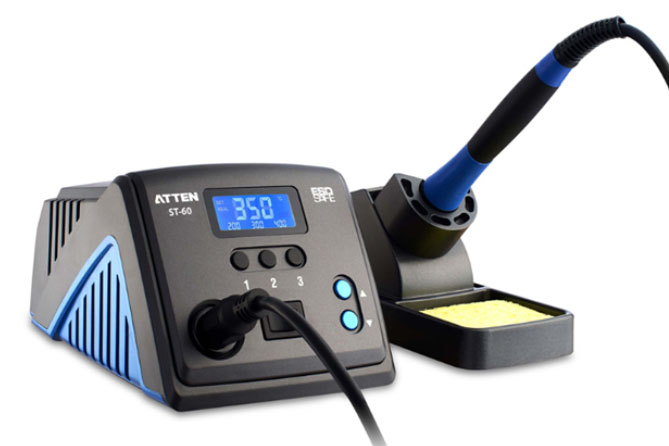

Download User Manual of ST-60

ModelST-60
Input Voltage220VAC
Temperature Range150°C ~ 480°C
Temperature Offset±50°C
Power 60 Watt
Temperature Stability±2℃ (in still air, no load)
Temperature Adjustment5 digits (Default)/1 digit (Fine-tuning)
Automatic Stand By Time1-120 minutes （Adjustable）
Automatic Shut Downlaod Time1-120 minutes （Adjustable）
HeaterHigh performance dual-core ceramic heater
Tip To Ground Impedance< 2Ω
Tip To Ground Voltage< 2mV
Soldring Tip900M Series



Performance
● High quality four-core wire heater
● Smart recognition of working or non-working status.
● Automatic standby, shutdown with smart time setting.
● Temperature locking.
● Beep alarm function available.
● Temperature read out in ℃ and ℉
● MCU controlled temperature calibration.
● Simulate bar indicating heating up status.
● User-friendly menu enables system setting easier.
● Separate iron stand to save room and to make easier deposit.
● New design with LCD display screen making control visualization.
● Buttons(1,2,3) for pre-setting or switching frequently used temperature.
● Low-voltage heater separated from power supply to keep soldering
 work safer.
● Soldering tip designed separate from heater and using
● Exchangeable 900M series to save use-cost.

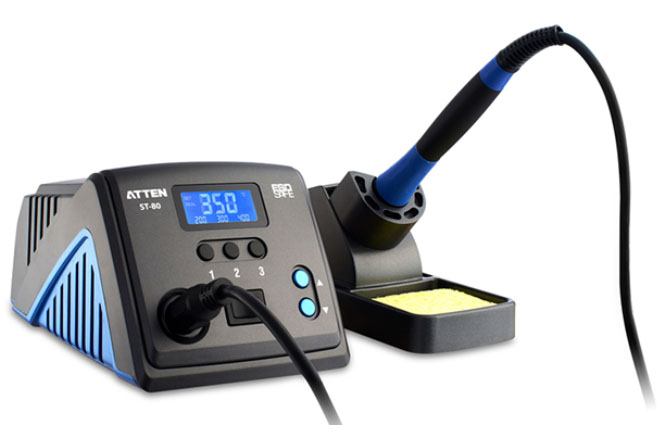

Download User Manual of ST-80

ModelST-80
Input Voltage220VAC
Temperature Range150°C ~ 480°C
Temperature Offset±50°C
Power 80 Watt
Temperature Stability±2℃ (in still air, no load)
Temperature Adjustment5 digits (Default)/1 digit (Fine-tuning)
Automatic Stand By Time1-120 minutes （Adjustable）
Automatic Shut Downlaod Time1-120 minutes （Adjustable）
HeaterHigh performance dual-core ceramic heater
Tip To Ground Impedance< 2Ω
Tip To Ground Voltage< 2mV
Soldring Tip900M Series



Performance
● Adjustable temperature control.
● Temperature range  (50°C to 480°C).
● Ceramic heating element and sensor ensures rapid heat-up temperature
and fast thermal recovery.
● Password protected temperature setting functionality.
● Preset mode allows you to store up to five (5) preset temperatures
Slender , lightweight ergonomic iron handles
● Use with Hakko T18 series tips
● ESD Safe

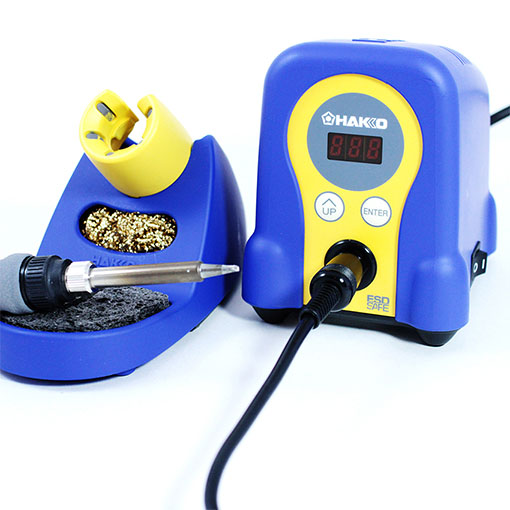

Download User Manual of FX-888D

ModelFX-888D
Input Voltage220VAC
Temperature Range50°C ~ 480°C
Power 70 Watt
Temperature Stability±1℃ at idle temperature (When set to 200 to 480°C
Heater ElementCeramic Heater
Tip To Ground Impedance< 2Ω
Tip To Ground Voltage< 2mV
Soldring TipT18 Series



Performance
● Super heat transfer and thermal recovery.
● Lock out key cart to prevent unauthoriized or accendental tempreature
setting.
● Soldering iron FM-2027 and FX-9501 uses quick-change composite tips.
● Low temperature alarm.
● Use with Hakko T12 series tips.
● ESD Safe

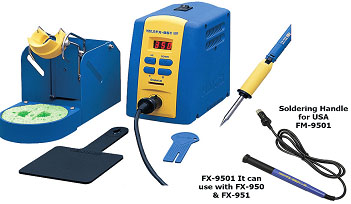

Download User Manual of FX-951

ModelFX-951
Input Voltage220VAC
Temperature Range200°C ~ 450°C
Temperature Stability±5℃ (in still air, no load)
Power 75 Watt
Heater ElementCompositte heater
Tip To Ground Impedance< 2Ω
Tip To Ground Voltage< 2mV
Soldring TipT12 Series
